Installation

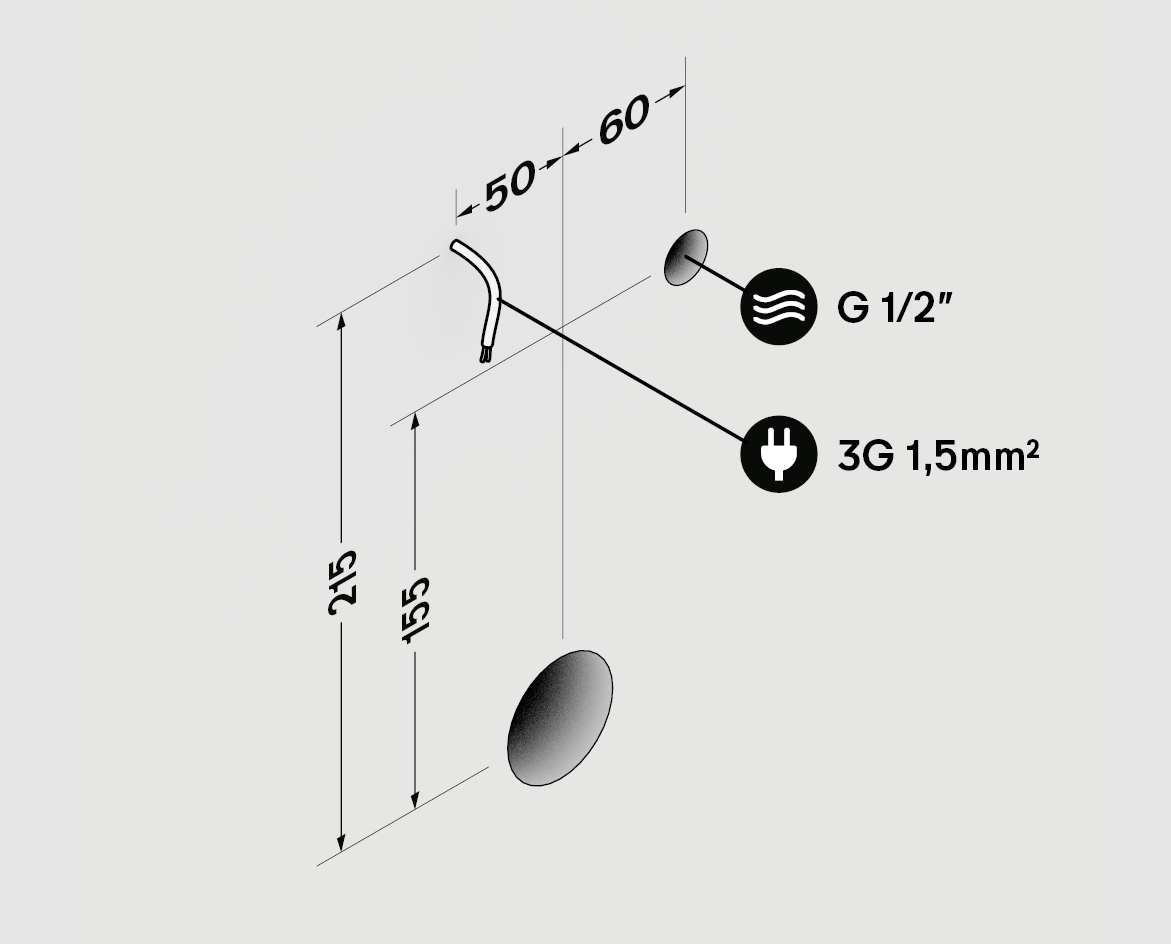

Step 1
Provide water supply and drainage and optionally power supply according to the diagram.

Step 2
Drill the fixing holes for the urinal mounting brackets. Refer to the urinal’s datasheet for all dimensions.

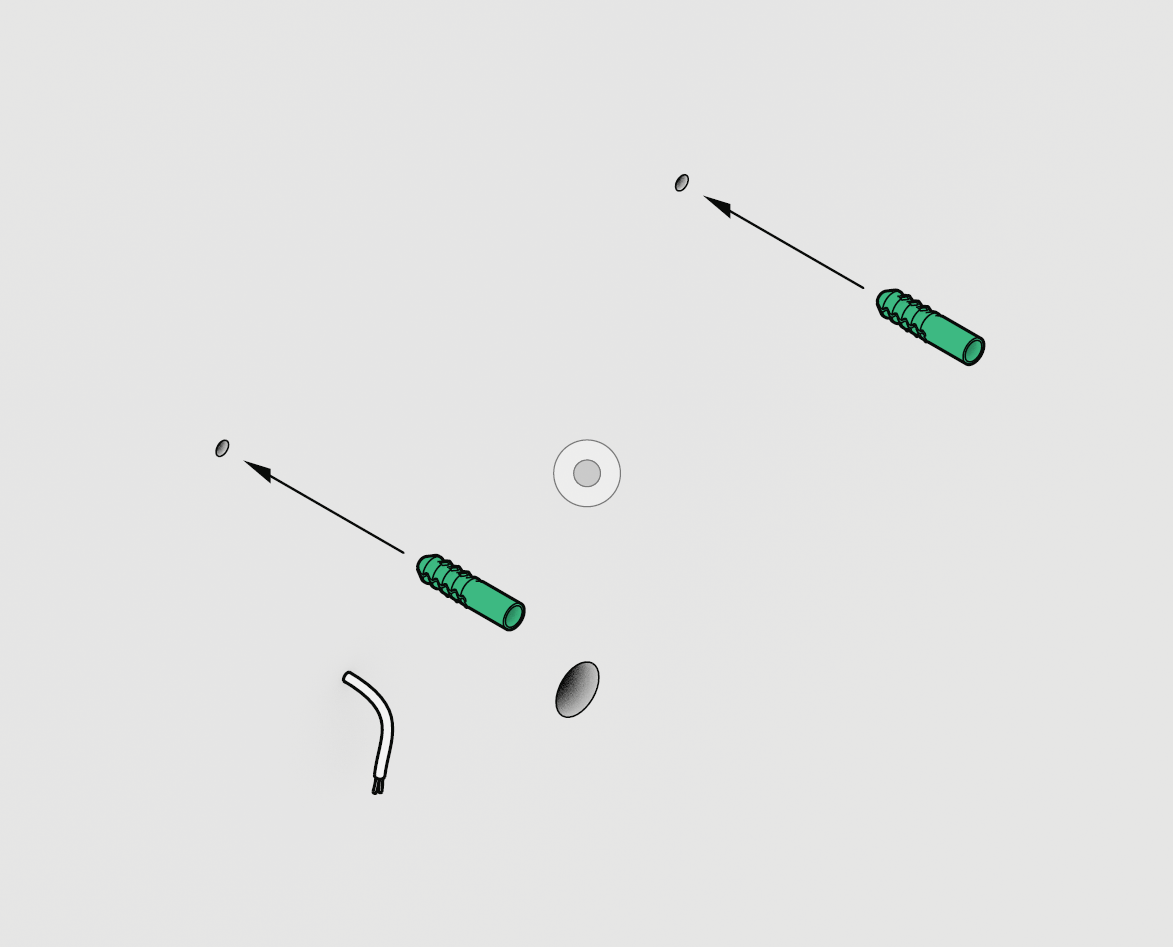

Step 3
Install the wall plugs.

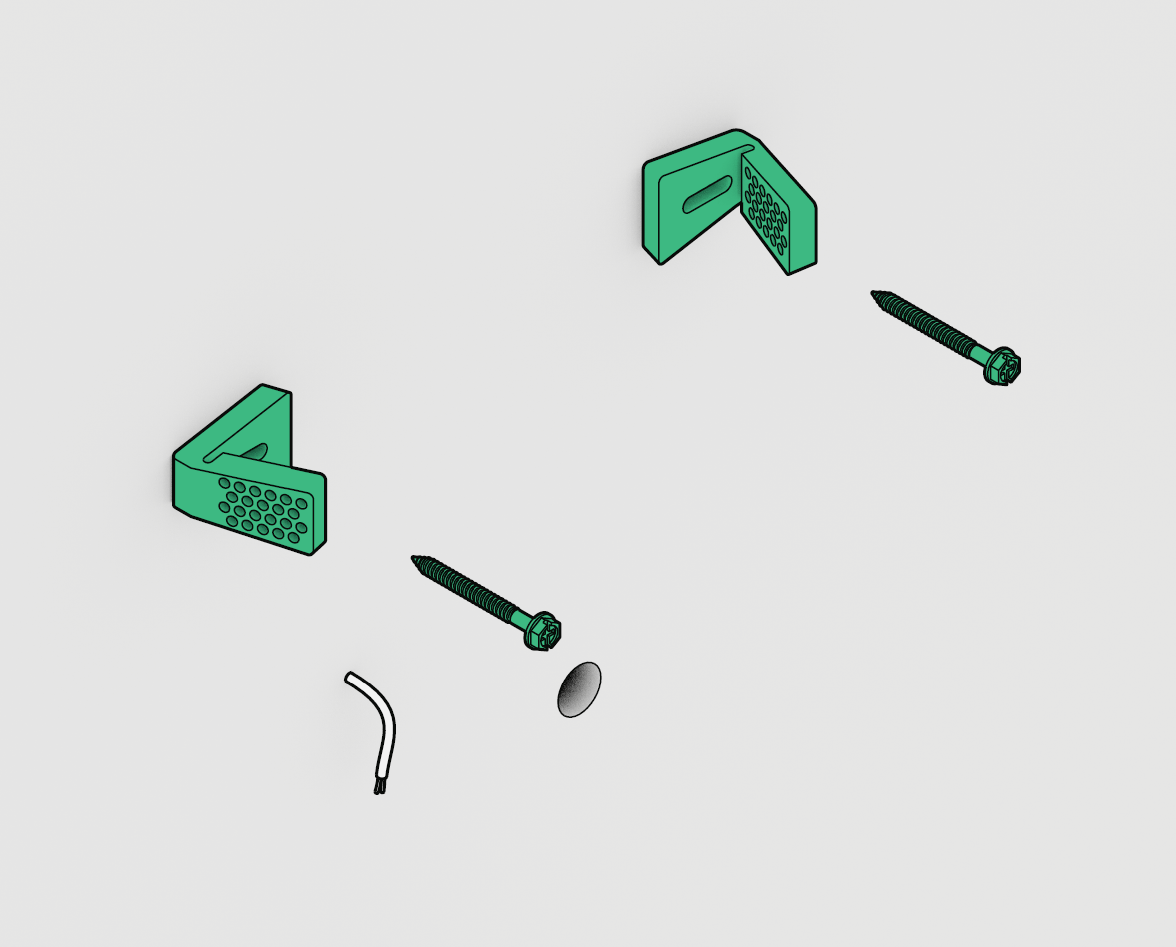

Step 4
Attach the urinal’s mounting brackets.

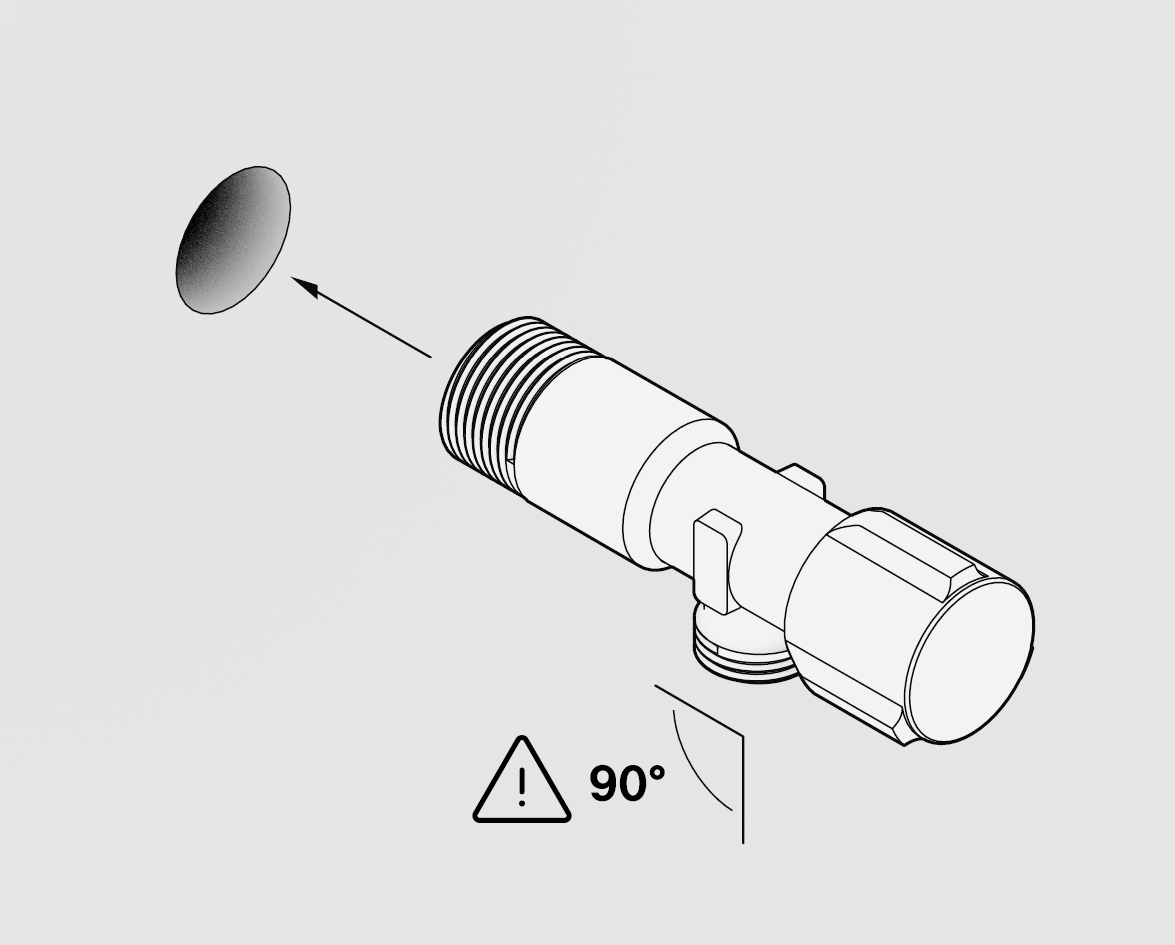

Step 5
Install the angle valve and make sure the outlet point downwards.

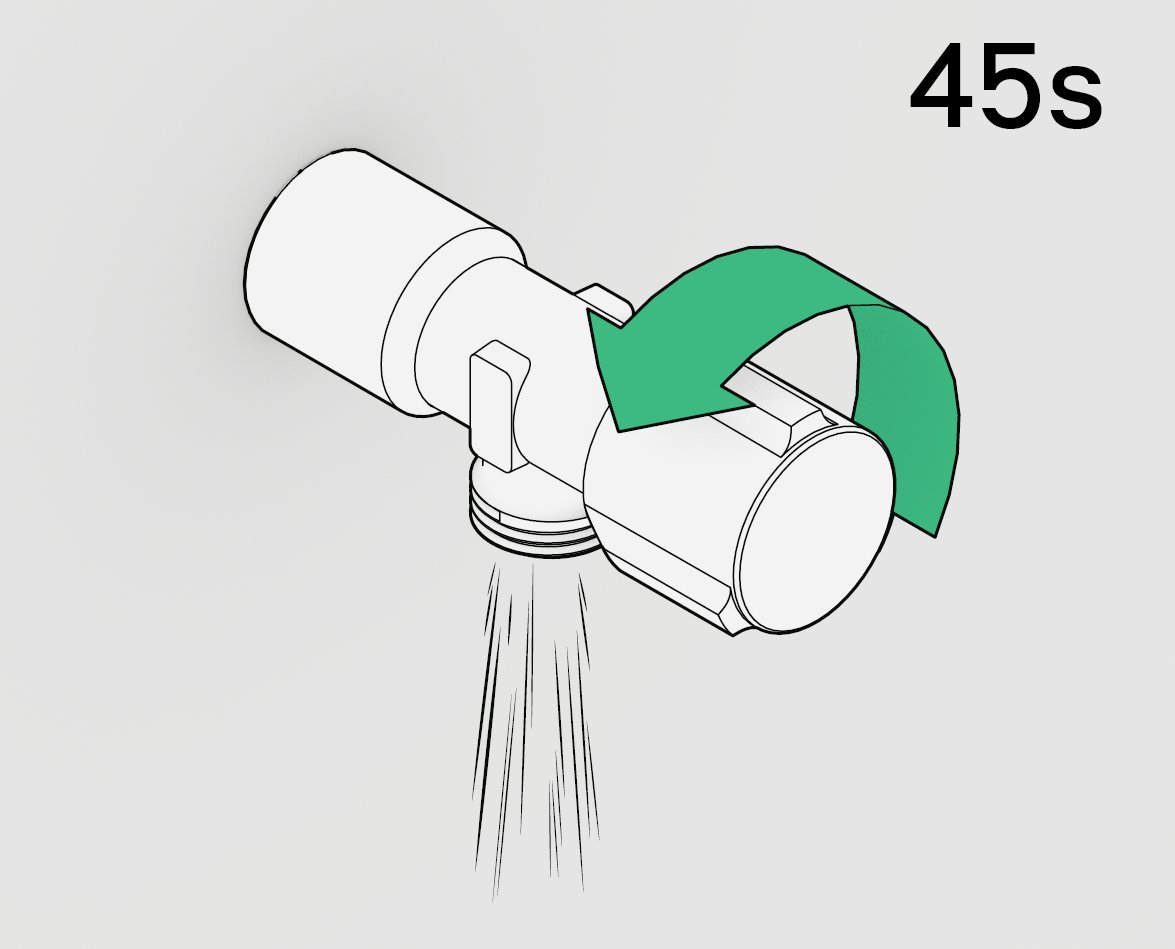

Step 6
Rinse the pipes for at least 45s.

Step 7

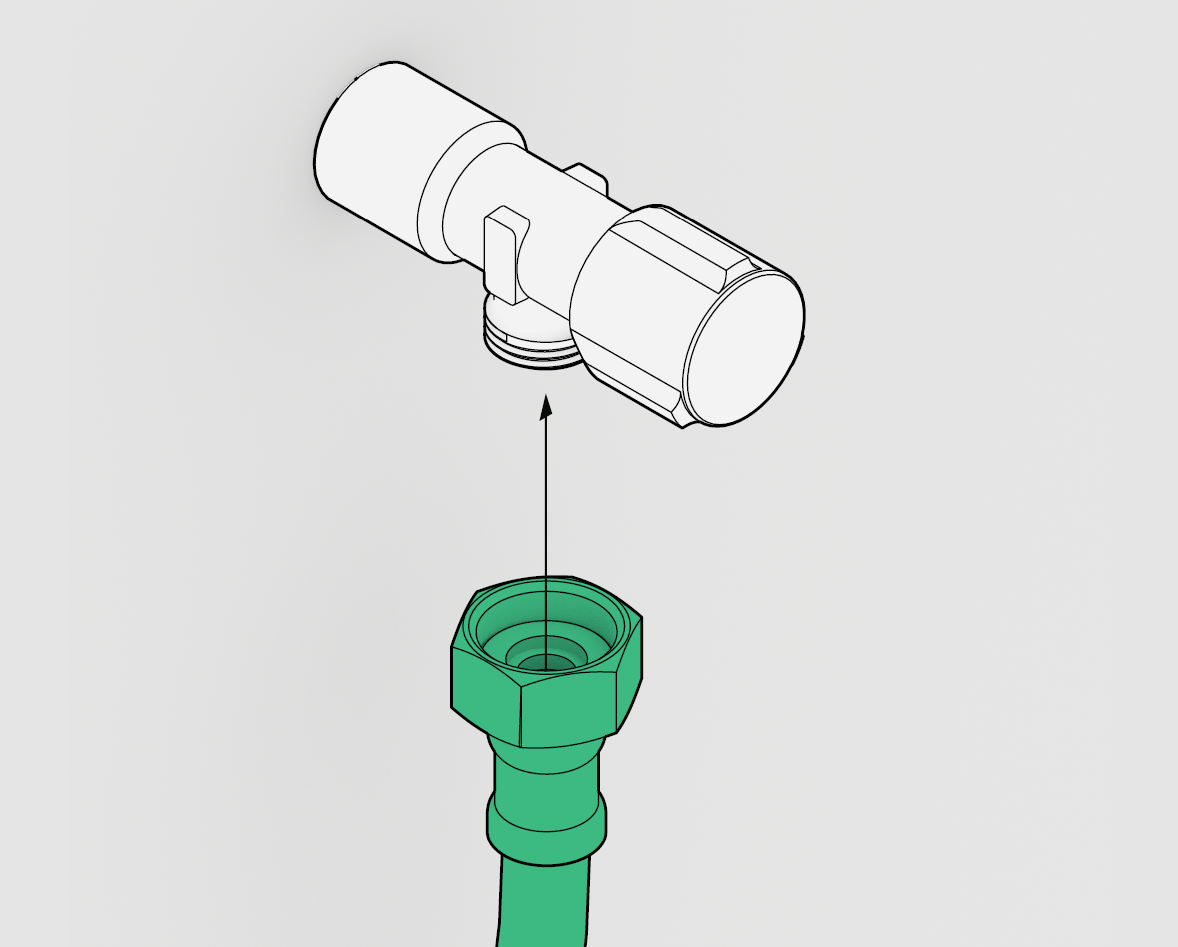

Connect the flexible hose
to the angle valve.

Step 8

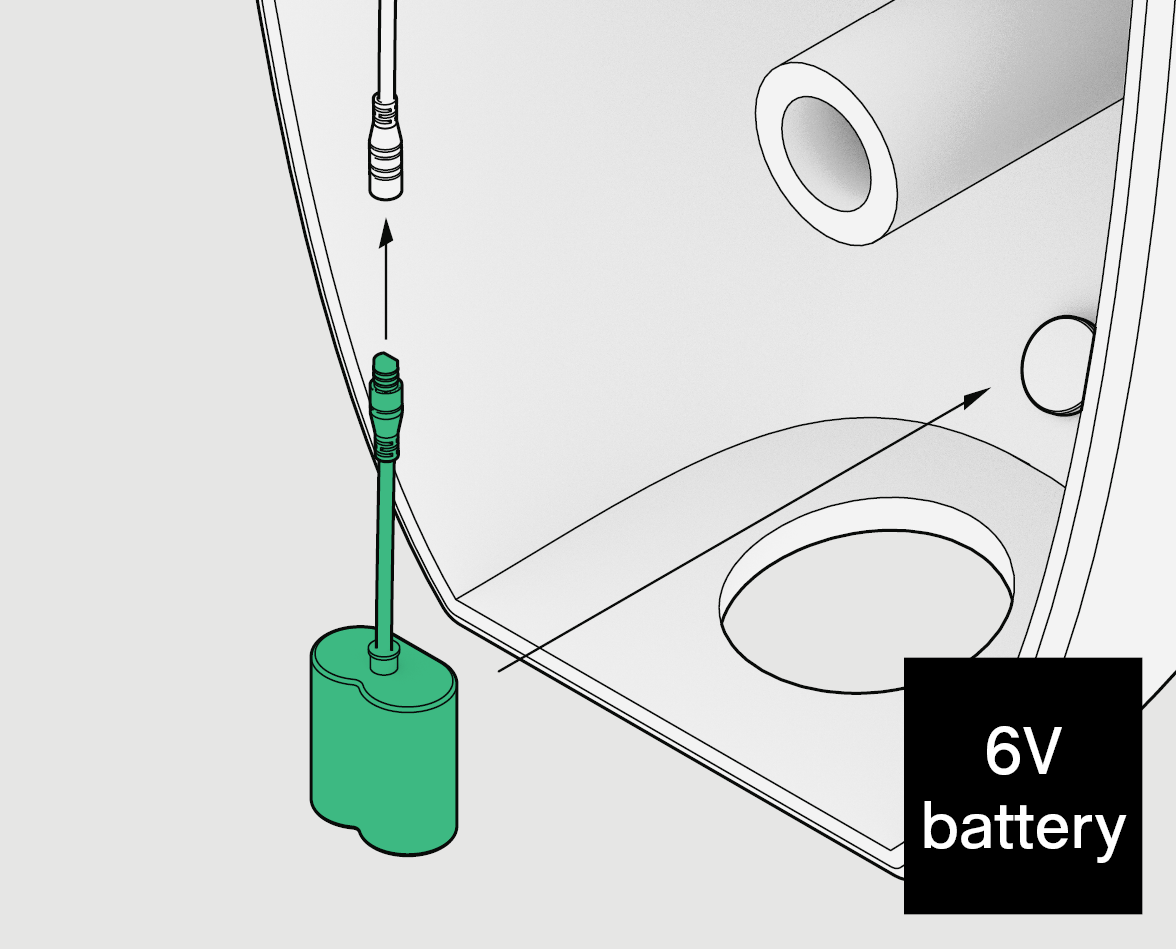

Connect the CRP2 battery to the IPEE Mini sensor.

Step 9

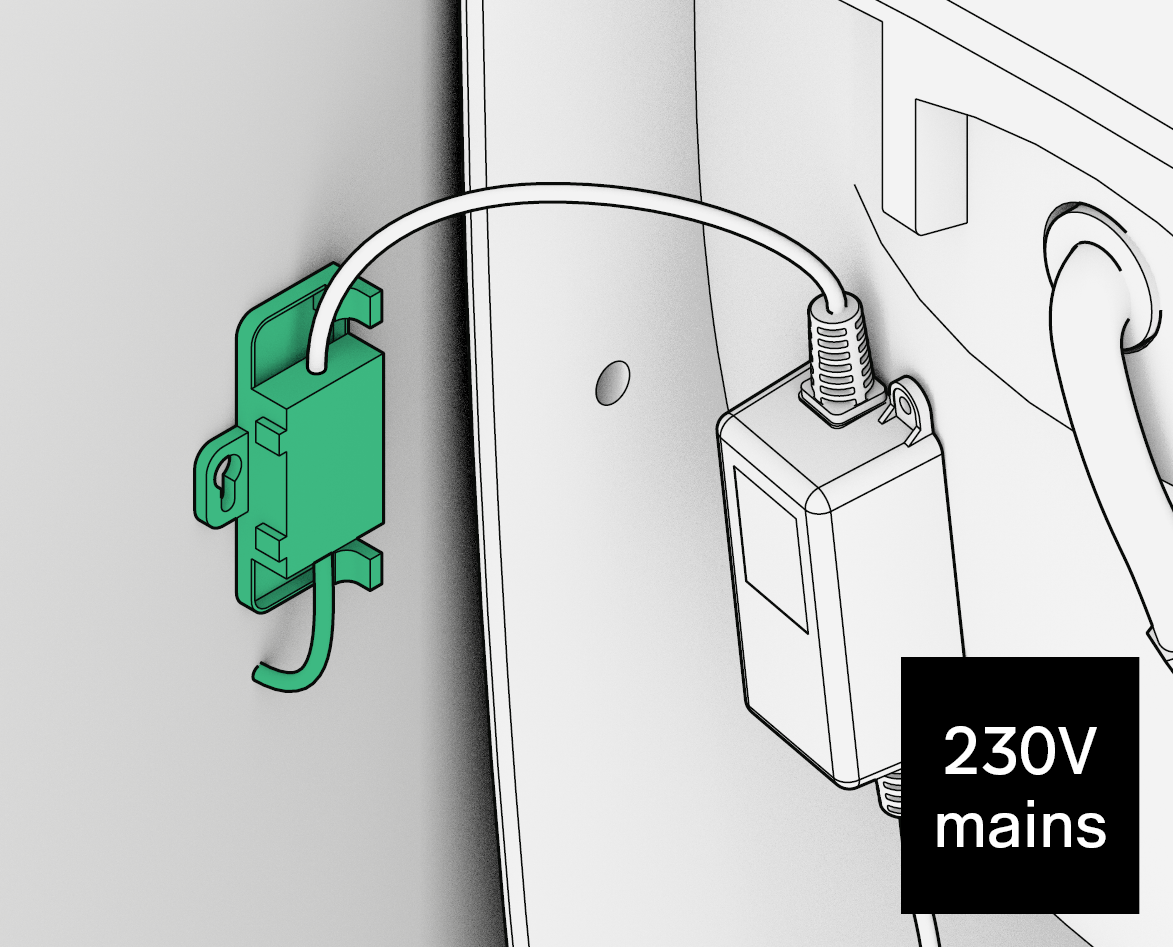

Connect the power supply
to the mains via the junction box.

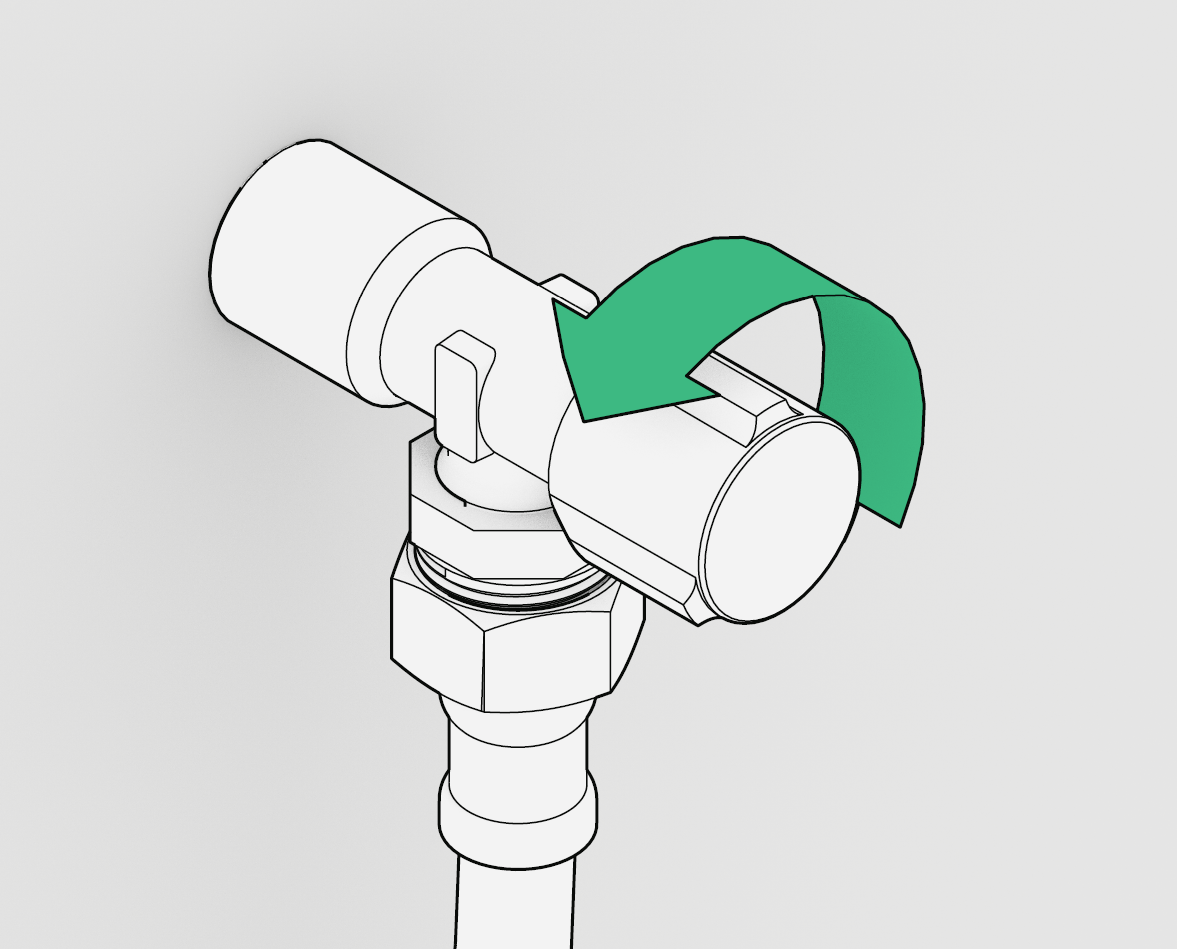

Step 10
Open the angle valve.

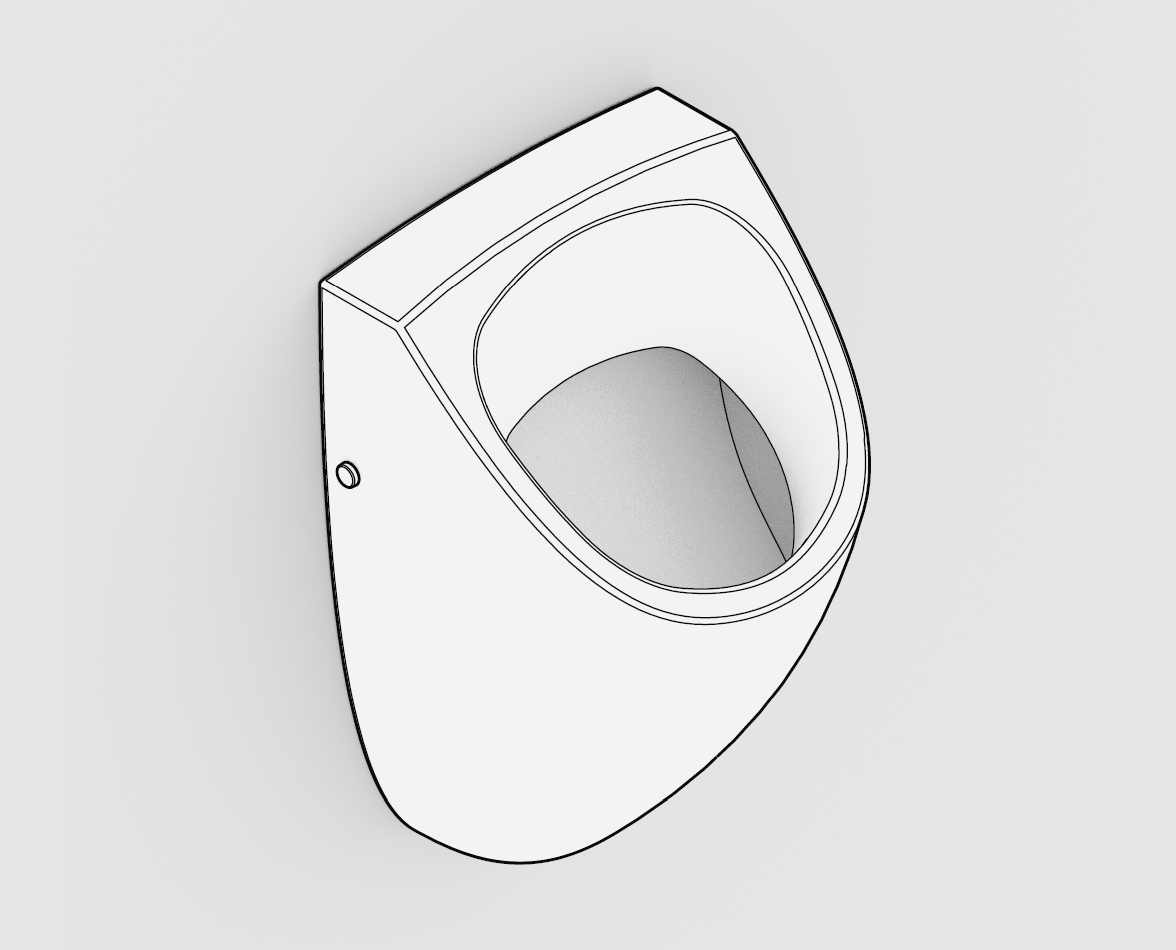

Step 11
Mount the urinal to the wall using the provided fixation kit.

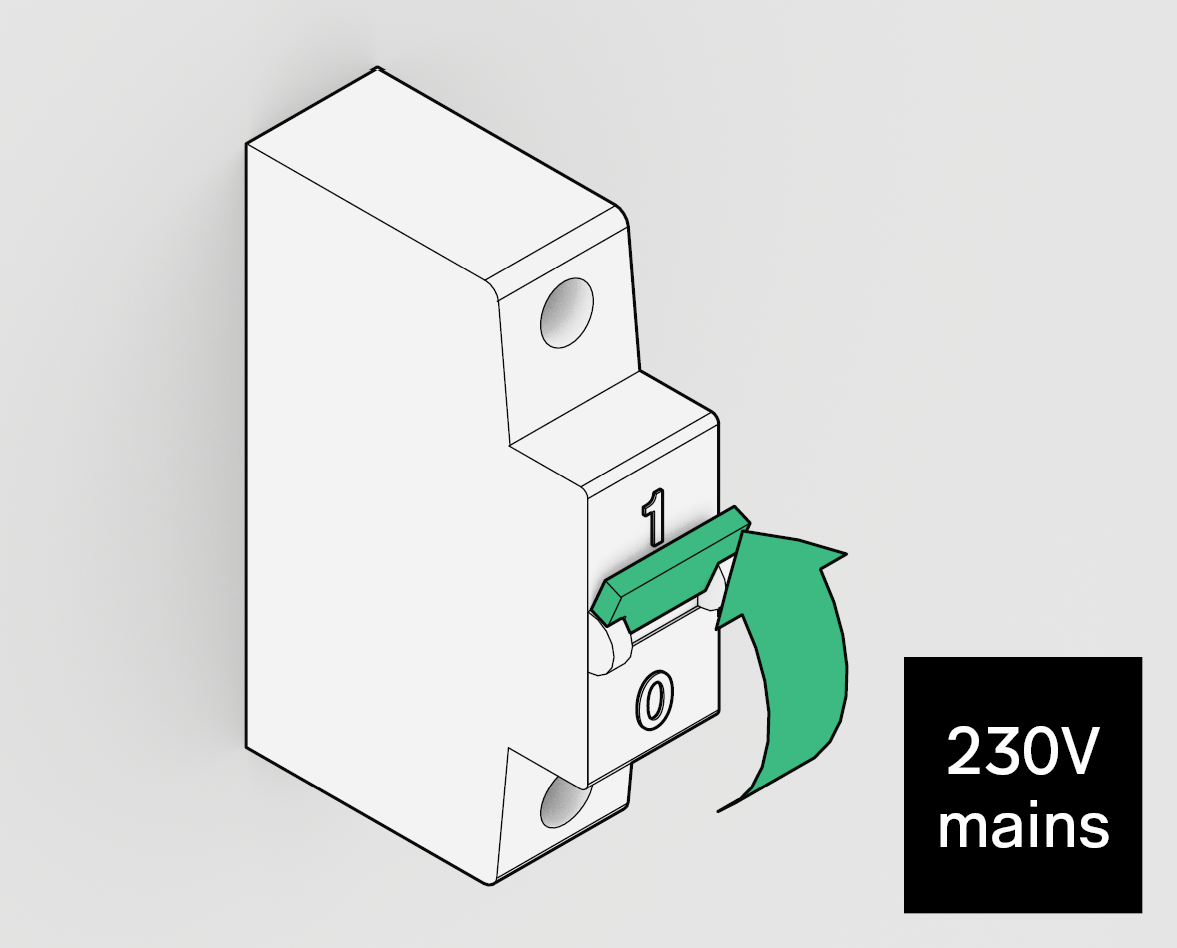

Step 12
Turn on the fuse.

Step 13
Your urinal Pack with IPEE Mini
is ready for use.
